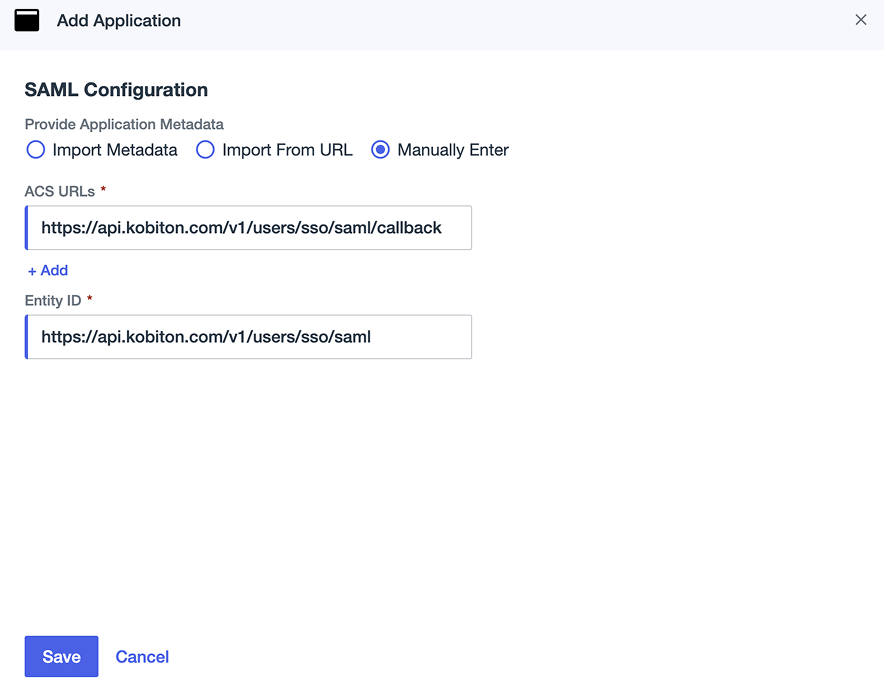

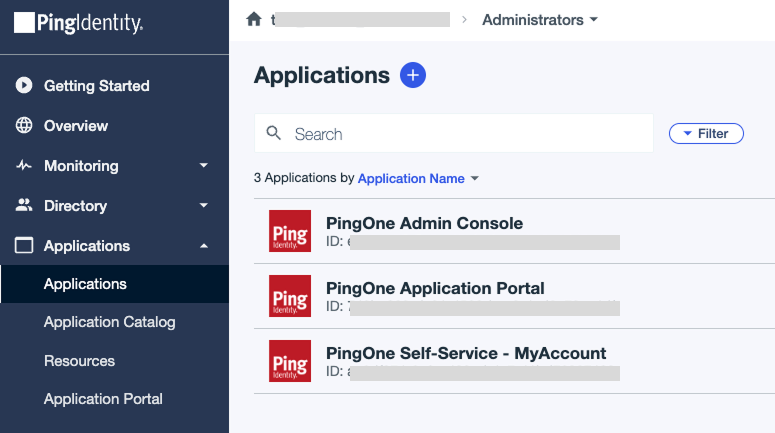

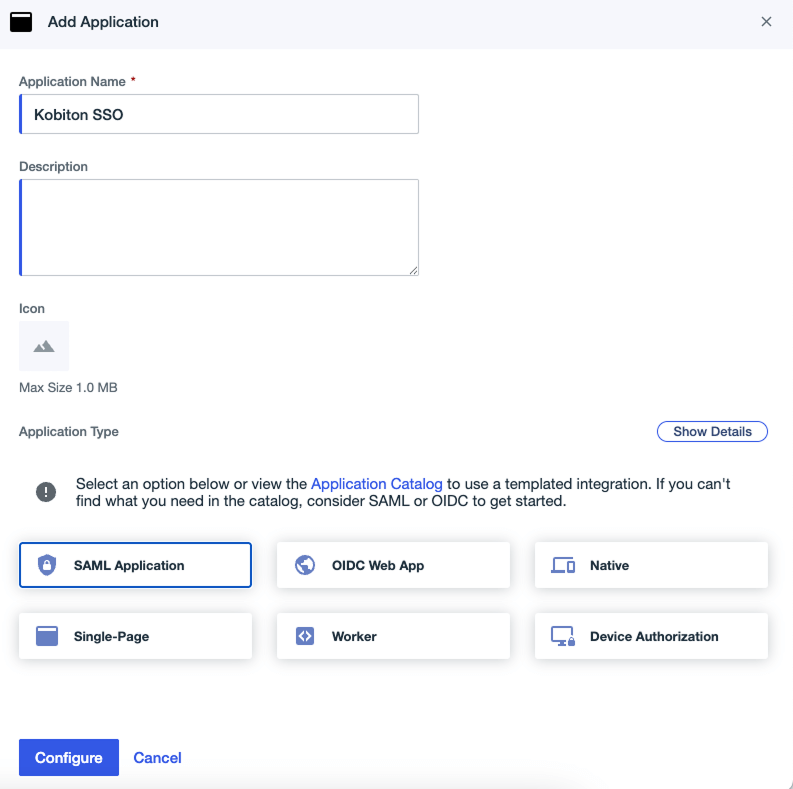

Use Ping Identity for SSO authentication Learn how to use Ping Identity for Single Sign-On (SSO) authentication with SAML 2.0 so members of your organization can sign in to Kobiton using their Ping Identity credentials. What You’ll Need Before you begin, make sure you have: An administrator account in both Kobiton and Ping Identity. An active environment in Ping Identity. Get Kobiton parameters First, you’ll need to save a copy of your Kobiton SSO attributes so you can easily add them to your IdP later. Select your profile name or picture, then choose Settings. Choose SSO Settings. From Basic configuration, copy the following values and save them to a note: Entity ID (or Audience URL) Reply (or SSO, or ACS) URL From User attributes (or parameters), copy the following values and save them to a note: email firstName lastName phoneNumber memberOf Later you’ll finish configuring your Kobiton SSO settings so keep this browser window open. Create a Ping Identity SSO Application Log in to your Ping Identity admin account. From the dashboard, choose the default Administrators environment or select another if needed. Go to Applications, then select the plus icon to add a new app. On the setup screen, enter a name for your application, such as Kobiton SSO, and choose SAML Application as the application type. Select Configure, then select Manually Enter on the configuration page. Paste the following from your Kobiton settings: Reply (or SSO, or ACS) URL into the Reply URL field Entity ID (or Audience URL) into the Entity ID field Save your changes and continue. By default, the application is not enabled. You need to manually enable it. Map Attributes and Download Certificate Open your newly created application and navigate to the Attribute Mappings tab. Select the edit icon and add the following mappings: Kobiton Attribute PingOne Attribute saml_subject User ID (default) email Email Address firstName Given Name lastName Family Name phoneNumber Mobile Phone memberOf Group Names Next, go to the Overview tab and note down the following fields to fill in the Kobiton SSO settings later: Issuer ID Single Signon Service Single Logout Service Download the Signing Certificate in X.509 PEM format. Rename the downloaded file to cert.pem. Create a User and Group in Ping Identity Create a new user in Ping Identity with the same email address as your Kobiton admin account. Then create a group and assign this user to the group. Return to the Ping SSO application, go to the Access tab, and click Edit. Under Groups, select the group you just created and save your changes. Refer to the Ping Identity guides on how to: Add a user Create a group Manage group membership Add IdP parameters and certificate to Kobiton Now, you’ll need to add your IdP parameters and certificate to your Kobiton organization. In your SSO Settings, scroll down to Set up at Kobiton side. Add your IdP parameters and certificate to the following: Identity provider issuer Identity issuer URL Identity provider sign in URL Identity provider sign out URL (optional) Identity provider certificate The Identity provider certificate must be a .pem file. If the certificate downloaded from the IdP has a different file extension (such as .cert), rename it to .pem before uploading. See the below mapping table for which value to use for each parameter above. Field name Value mapping Identity provider issuer Ping Identity issuer URL Issuer ID Identity provider sign in URL Single Sign-On Service Identity provider sign out URL (optional) Single Logout Service Verify and save configuration Make sure you have created an account with the same email as the currently logged in Kobiton account and assign the new SAML application to that user on the IdP side before continuing. Select Verify to test your SSO configuration. The system will open a new browser tab to the SSO login page. In this new tab, log in using the account that has the same email as the current Kobiton account. If logged in successfully, go back to the previous browser tab with the SSO Settings opened. Wait for a while for the SSO Settings page to automatically reload (do not force reload the page) and a success message displays like the below: After receiving the success response, select Save to complete your SSO configuration. After verifying and saving the configuration, you can turn on Enforce users to login to Kobiton only through SSO to force the users to log in only via SSO (optional). When SSO login enforcement is turned on: You can add existing users to be exempted from the SSO login enforcement by adding the username into the Choose users who are allowed to login without SSO field. You also gain access to Specify Organization Access Restrictions with the ability to enable Pass role/team assignments to users in the SAML validations. Choose the method that’s best for your organization.
